Fiber optic faceplate

It is floor mounted or wall mounted, indoor, for end user, capable to handle fiber fusion, fiber cables and pigtails.

FTTH Fiber optic faceplate with 2ports and ABS material

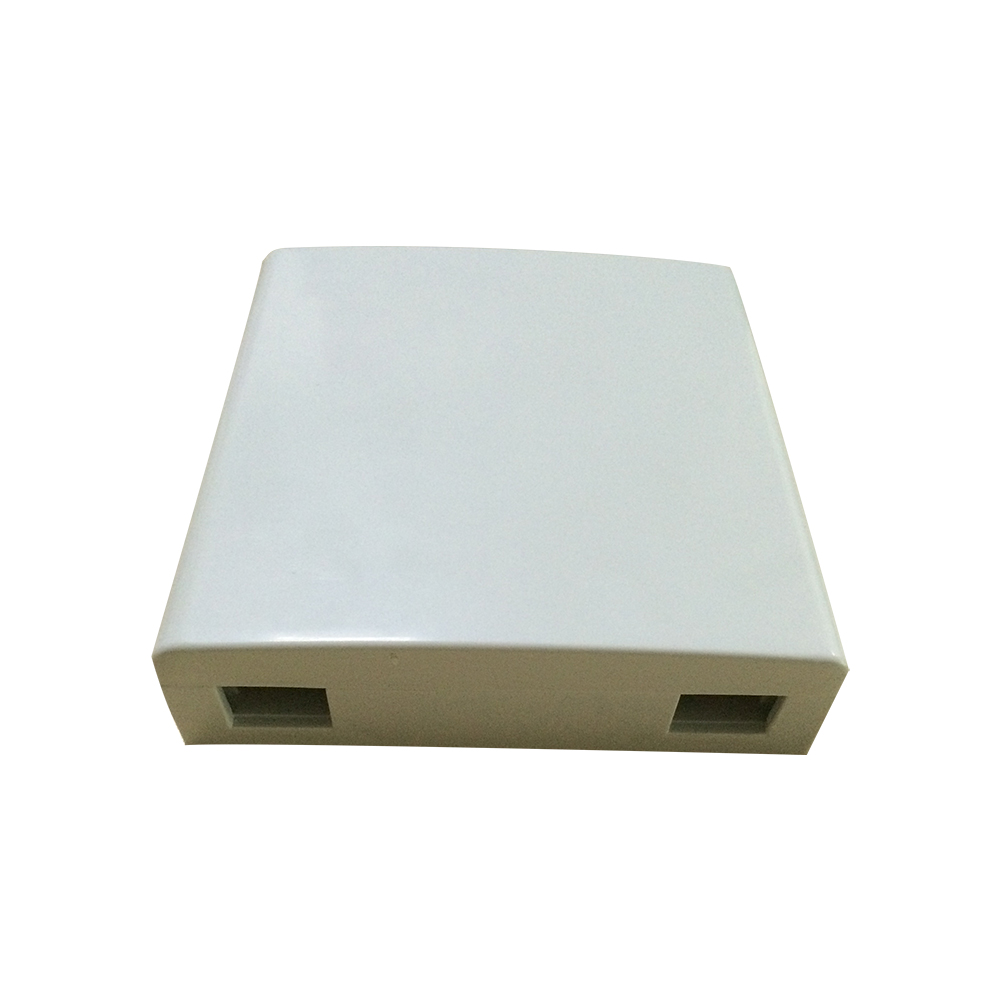

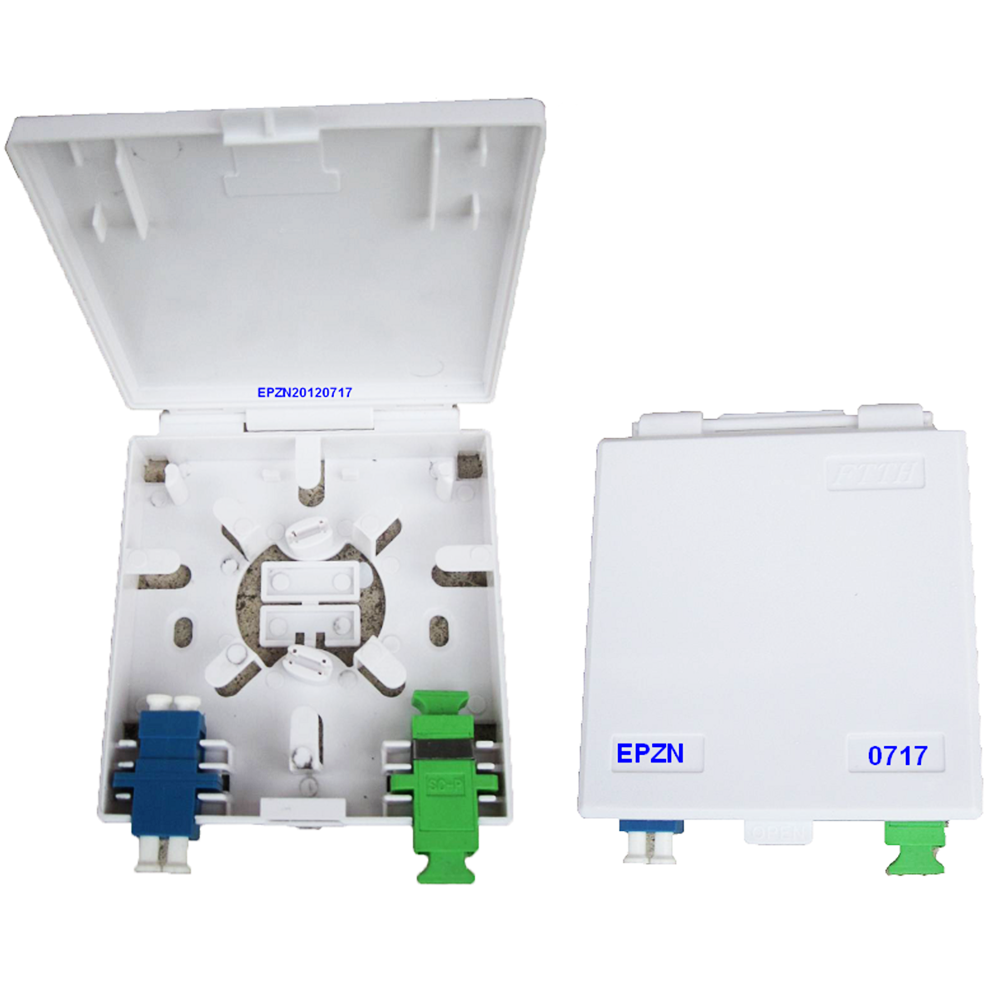

2 core box 02 FTTH 2Core box from MIC 立陶宛

TGL-FP-001 插图


Radian appearance makes it slinky

Suitable for various modules and multimedia interfaces

Embedded chart and logo position make it easy to identity

Support MM or SM fiber connection

Suitable for FC, LC, SC, ST… adapters

Reasonable inner space design

Sutable bending radius

Protect optical fiber

Realize FTTD(fiber to the desktop)system



A user end product to realize optical fiber to desktop solution.

It can be used in home or working area to accomplish double-core fiber access and port output.

Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

Performance index:

small size, light weight, pleasing in appearance

wall mounted with mechanical protection function

max fiber capacity 4-16 fibers,4-16 adapter output

coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, SC, LC and SC/FC are all available

hinge and convenient press-pull button lock design greatly reduced installation strength

very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables


1pcs into a clear plastic bag, some bags into a outer carton.

As per customer’s requirement.

Product photo of fiber optic faceplate for reference:


–SC Simplex adapter       2pcs

–SC Simplex pigtail, OD=0.9mm, L=1M     2pcs

–Screw, protect heatshrink tube   1set

–English manual      1pc

Product pictures:

 86 86 款插图

Order information:

Name Material Capacity Color Size
TGL-FP-01 ABS 2 ports White or Ivory 86*86*28mm
TGL-FP-08 ABS 2 ports White  86*86*24.2mm
TGL-FP-09 ABS 2 ports White  86*86*23mm
TGL-FP-10 ABS 2 ports White  86*86*28mm
TGL-FP-11 ABS 2 ports White  85*85*26mm
