40G QSFP-4*SFP Passive Direct Copper Cables

40G QSFP-4*SFP Passive Direct Copper Cables

1. Applications

  • 10G/40G Ethernet
  • InfiniBand, Fiber Channel 4G/8G/10G
  • Sonet Multiplatform support
  • High Performance Computing Clusters
  • High End Servers
  • Metro Network Switch/Cross Connect

2. Features

  • Passive Copper (Paddle cards plus Copper cable) (Cable Length: 1~5m)
  • 4-Channel Full Passive Copper Cable Transceiver
  • QSFP+ conforms to the Small Form Factor SFF-8436 and SFF-8431
  • Support for multi-gigabit data rates up to 10.5Gbps
  • Data rates backward compatible to 1Gbps
  • Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)
  • Hot-DensityQSFP 38-PINfootprint
  • I/O Connector designed for high speed differential signal applications
  • Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
  • Compatible with industry standard SFP cages +Switches
  • EEPROM signature can be customized.
  • Temperature Range: 0~ 70 °C
  • RoHS-6 Compliant

3. Description

High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.

QSFP+ connectors provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of aggregate 40Gbps as specified for QSFP+. These interconnects have three times the density of SFP+ interconnects(MSA) and have been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

QSFP+ cable assemblies are hot swappable and the programmed EEPROM signature enables the host to differentiate between a copper cable assembly and a fiber optic module.

Low power consumption assists in making the passive copper cable assembly an economic solution for within rack, or rack-to-rack applications.

4. Standard

  • Compliant with electrical standards IEEE 802.3ba
  • Compliant with mechanical standard SFF-8436 and SFF-8431
  • Compliant with EEPROM standard SFF-8472
  • RoHS Compliant

5. Performance Specifications

5.1. Absolute Maximum Ratings

These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.

Table.1 Absolute maximum ratings

Parameter

Symbol

Min

Max

Unit

Maximum Supply Voltage

Vcc

0

3.6

V

Storage Temperature

Ts

-40

85

°C

Relative Humidity

RH

5

95

%



5.2. Recommended Operating Conditions

Table.2 Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Standard Tc

0

25

70

°C

Storage Temperature

Ts

0



70

°C

Relative Humidity

RH

5



95

%

Data Rate





10/40



Gbps

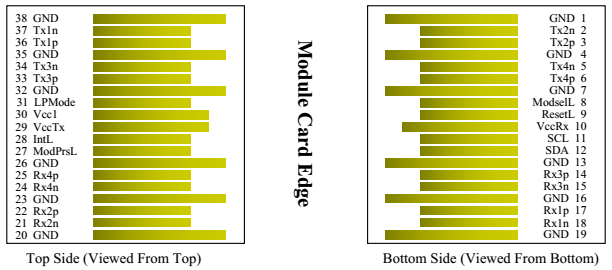

 Module card 插图

5.3. Pin Definitions

DAC PIN插图 DAC pin 插图2

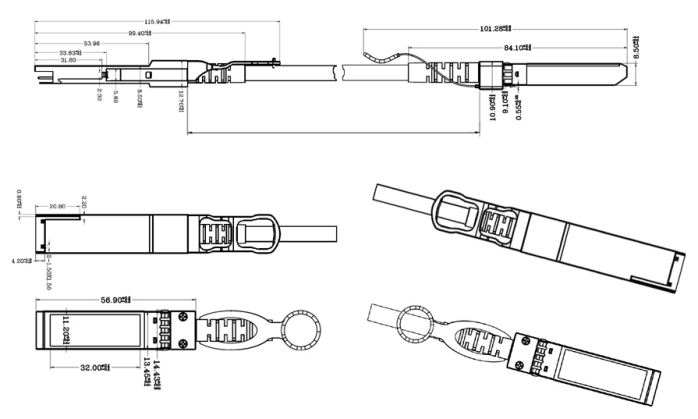

5.4. Mechanical Dimensions

40G QSFP-SFP 插图

6. Aplication Cautions

6.1. ESD

This transceiver is specified as ESD threshold 1kV for high speed pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM).  However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

6.2. LASER SAFTY

This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001.  This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (July 26, 2001)

6.3. Important Notice

DAC 注意事项

Note:

     1)Copper type maximum length recommended at 15 meters;

     2)Various cable lengths available for all types;

     3)Latch/tab available”on top”or”bottom”position.

订单编号插图
